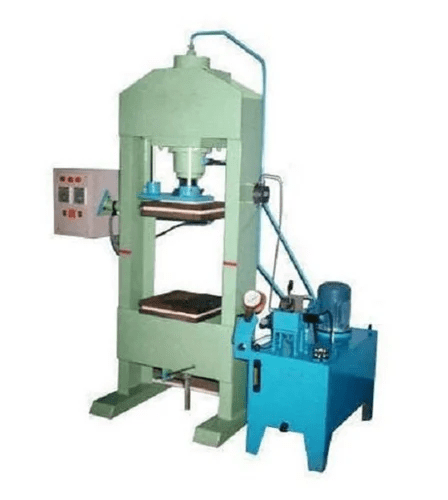

Product Specification:
Capacity | 50 Tons |
Platen Size | 250 x 250 mm |
Machine Type | Closed Frame |
Product Description:
Compression moulding is a closed-mold process in which tremendous pressure is applied to the work....Product Specification:
Capacity | 50 Tons |
Platen Size | 250 x 250 mm |
Machine Type | Closed Frame |
No. of Station | Single |
No. of Daylight | One |
Heating of Platens | Electrical Heater |
Stroke Length | 150 mm |
Bore Diameter | 180 mm |
Motor Power | 3 HP |
Condition | New |
Country of Origin | Made in India |
Product Description:
Compression moulding is a closed-mold process in which tremendous pressure is applied to the work. It's suitable for smaller items with low to medium production numbers where the tightest tolerances.
Compression moulding necessitates the use of a blank ( of required shape, size, weight). Plays a key role in controlling mould flow rate to avoid air entrapment and excess flash.
A heated mould tool and the pressure of a clamping press are used to form the rubber. The curing or vulcanisation process takes place before the final portion is removed and cooled. An open mould with an elastomer blank positioned in the cavity is used in compression moulding. The final output consumable product is formed in a closed mould.
The construction of these processes is Four pillar type. These type of presses are available in both downstroke and upstroke versions These traces are available with electrical and PLC controls and in hot and cold moulding with maximum accuracy.
Application:
Auto Parts Moulding
Oil Seal Moulding
O Ring Moulding
Rubber Bushes Moulding
Engine Rubber Mountings Moulding
Rubber Sheets, Washers, Springs and many rubber parts Moulding
