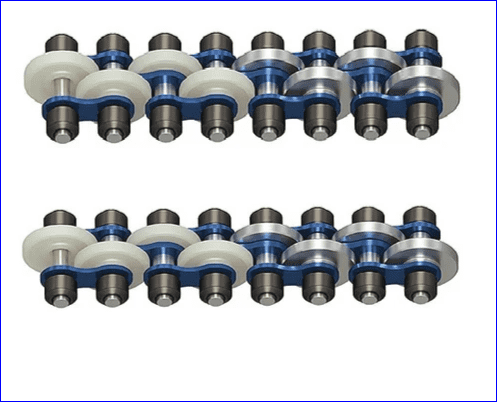

Corrosion Resistant Chain

Brand: Drives & Drives

Ask For Price

Product Specification:

Material	Stainless Steel
Width between Inner Plates	3 mm
Roller Diameter	5 mm

Product Description:

We have started our business to manufacture superior Corrosion Resistance Chain single...

View Complete Details

Product Details
Company Details

Product Specification:

Material	Stainless Steel
Width between Inner Plates	3 mm
Roller Diameter	5 mm
Plate Height	7.1 mm
Bearing Pin Diameter	2.31 mm
Width over Bearing Pin	8.6 mm
Width over joint Fasteners	11.7 mm
Projected Bearing Area	0.11 sq.cm

Product Description:

We have started our business to manufacture superior Corrosion Resistance Chain single stransind. Our range of products are widely used in various industrial sectors and applications. For making the products suitable to be used in such applications, we use superior raw material in the manufacturing process of the chains. We also examine the products strictly just before the final delivery to the customers. Feature: Minimum maintenance Resistance to chemicals Durable life Product Range:

Intl Ref no.	Diamond Chain No.	Pitch (P)	Width between Inner Plates (W) MIN	Roller Dia (D) MAX	Plate Height (H) Max	B earing Pin Dia (d) MAX	Width over bearing Pin (A) MAX	Width over joint Fasteners (B) MAX	Transverse Pitch (P1)	Projected bearing Area (sq.cm)	Avg Weight per metre (Kg)	Tensile Strength (Kgf) MIN
05B-1	D05B01SS01	8	3	5	7.1	2.31	8.6	11.7	-	0.11	0.39	300
06B-1	D06101SS01	9.525	5.72	6.35	8.2	3.28	13.5	16.8		0.28	0.44	650
08B-1	D08301SS01	12.7	7.75	8.51	11.8	4.45	17	20.9		0.5	0.7	1200
10B-1	D10101SS01	15.875	9.65	10.16	14.7	5.08	19.6	23.7		0.67	0.92	1450
12B-1	D2001SS01	19.05	11.68	12.07	16.1	5.72	22.7	27.3		0.88	1.12	1700
16B-1	D16001SS01	25.4	17.02	15.88	21
