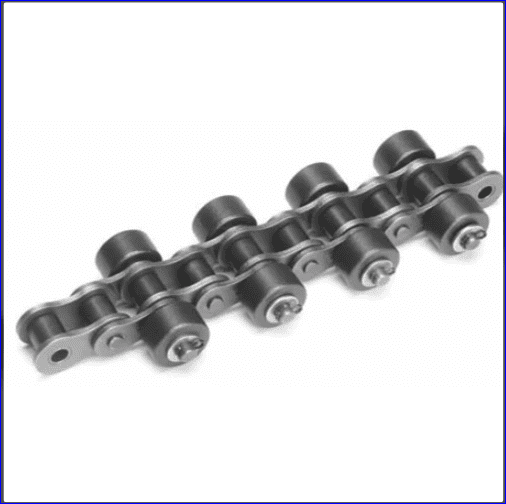

Double Pitch Chain

Brand: Drives & Drives

Ask For Price

Product Specification:

Pitch	25.40 P
Roller Diameter (mm)	10 - 20 mm
Chain Width (mm)	5 mm

Product Description:

The range of Double Pitch Chain offered by us is appreciated for latest technical designs. We...

View Complete Details

Product Details
Company Details

Product Specification:

Pitch	25.40 P
Roller Diameter (mm)	10 - 20 mm
Chain Width (mm)	5 mm
Length of Chain	10 mm
Tensile Strength	Strong
Structure	Roller Chain
Color	Black
Material	Stainless Steel
Intl Ref No	A2040
Diamond Chain No	E08A01
Roller Diameter	7.92
Extended Pin Diameter	3.96 mm

Product Description:

The range of Double Pitch Chain offered by us is appreciated for latest technical designs. We have hired an expert team professionals, which strives to manufacture this range of chains with strict adherence to the set industrial norms and standard. Our quality controllers also examine the chains on the basis of various parameters to deliver a defect-free range of products to the customers. Features: Resistance to abrasion Resistance to corrosion Easy installation Product Range: American Series

Intl Ref No .	Diamond Chain No.	Pitch (P)	Width between inner plate Min	Roller Dia (D) (M A X)	Extended Pin Dia (d) Max	Pin Extension L1	Extended Pin Length L2
								A2040	E08A01	25.40	7.85	7.92	3.96	9.50	16.70
								A2050	E10201	31.75	9.40	10.16	5.08	11.90	21.00
A2060	E12101	38.10	12.58	11.91	5.94	14.60	27.80
A2080	E16101	50.80	15.75	15.88	7.92	19.00	35.30
A2100	E20101	63.50	18.90	19.05	9.53	23.80	43.40
A2120	E24101	76.20	25.22	22.23	11.10	28.60	52.40
