Product Description:

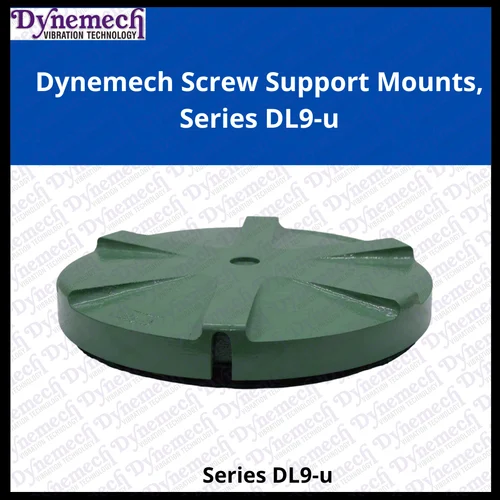

Dynemech offers a variety of SCREW SUPPORT MOUNTS Series DLC to improve the design and performance of the machine tools to meet customer demand. Insulation plates having different load carrying capacities and different natural frequencies are assembled with screw support mounts to suit almost every industrial application.
Application:Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Size :Dia-302(mm), Height-84(mm)
Load Capacity (Kg.):4200 Kg/pc
Bolt Size:M24x3.0X200mm Natural Frequency (Hz):18
Coeff. of Friction:0.8
Adj.(mm):18
Working Temp Range °C:-16 to 90
Weight ( Kg.):30
Material:Rubber+Cust Iron+Mild steel
Colour:Green & Dark Grey
Additional Information:
Production Capacity: 100
Delivery Time: As Per Order
Packaging Details: Wooden & Corrugated
