Product Specification:
Casting Tolerance | +/- 0.5 mm |
Minimum Wall Thickness | 3.5 mm |
Surface Finish | 4 - 12 Microns |
Product Description:
Some of the products made using Gravity Die Casting process are Housings, Junction boxes,...Product Specification:
Casting Tolerance | +/- 0.5 mm |
Minimum Wall Thickness | 3.5 mm |
Surface Finish | 4 - 12 Microns |
Minimum Core Hole Size | 6 mm |
Maximum Weight | 100 Kgs |
Pre Heated Temperature | 200 deg C |
Maximum Size | 1500 X 800 mm |
Country of Origin | Made in India |
Product Description:

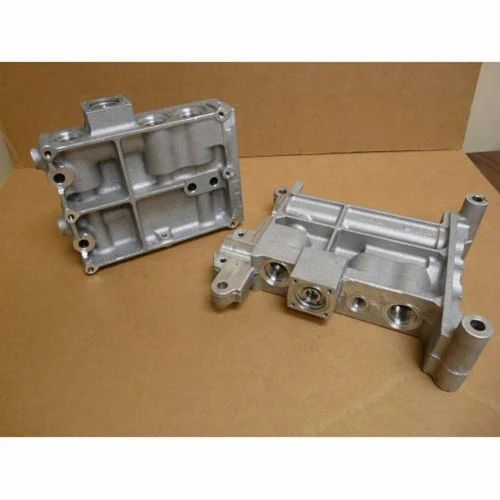

Some of the products made using Gravity Die Casting process are Housings, Junction boxes, impellers, Valve bodies, Flanges, Manifolds, Actuator bodies, Compressor parts, Electrical fittings parts, Covers.
Permanent mould casting get their name from the fact that the process utilizes permanent metal moulds instead of temporary sand moulds for the casting process. Cast iron is the most commonly used mould materials as it offers great reliability during casting. The cores are made from other metals or sand. The cavity surfaces of the moulds are coated with fine layers of materials that have good heat-resistant properties such as clay or sodium silicate.
Casting has to be done with care in order to ensure that proper thermal balance in maintained throughout the casting process. This is done through a variety of ways including external cooling techniques using water or relevant radiation techniques.
Permanent mould casting, while not offering the same level of design flexibility and ease pattern usage as Aluminium Sand Castings, it has the advantage of offering relatively lower design and development costs as well as production costs. At VJP, we have the expertise to undertake permanent mould castings of complex components of diverse application in various industries.
