Product Description:

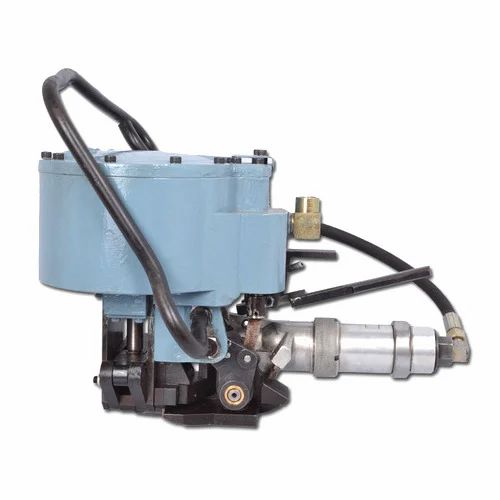

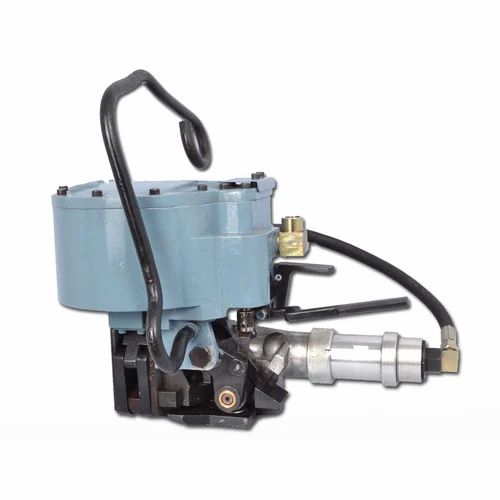

Backed by rich industry understanding and awareness, we are able to offer a broad array of Heavy Duty Pneumatic Combination Tool at highly reasonable price to the clients.
Features:
Heavy duty Combination Tool
Tensioning, Sealing & Cutting Operations done in one setting
Tensioner – Pusher type, Achievable tension - 725 kg / 1600 lb
Sealer – Double reverse notch (up cut)
Cutter – The cutting operation done by shearing operation
Easy to operate & maintenance
Less time and man power required than individual system
High alloy Aluminum Cylinder body used for safety & less weight
Widely used in steel industries to packaging bulk materials for sheet, Coil packing & pipe bundling etc
Used for stationery operation, the tool may be suspended on a spring balancer using a suspension bracket
Inserting of the strap into the tool is easier
Operational Manual:
Before connecting the pneumatic hose connector with machine please check the FRL is fitted with pneumatic hose line and the hose in safe working condition.
Check the on line air pressure.
Pull the strap from the coil & insert the strap in to the seal in such a way so that flat surface of the seal remains facing outside the strap.
Apply the strap around the package and bottom strap insert through the seal. Then hold the overlap portion of the straps with your left hand.
Bend the extended strap as Hook against the seal.
Pull out excess slack with your right hand.
Connect the pneumatic connector with the tool. The jaws of the sealer unit will be opened & the gap between Roller & Pressure pad adjusted automatically for insert the strap into the tool.
Insert the top strap under the feed wheel and place the seal between the jaws.
Now press on the Tensioner Trigger for tensioning the strap.
Then press on the sealer trigger for sealing the strap & also cut the Mother Strap.
Safety Instructions:
Before using the tool, read the operating instructions carefully
Wear hand gloves, safety shoe, Helmet, goggles during operation
Do not stand in line with the strap while it is tensioned. The strap may break
Do not put your fingers into the Tensioner wheel, Jaws and cutting area
Do not put your hand under the strap on the job while strap is tensioned
Only use equipment recommended for the strap.`CS-114S’ are recommended only for 0.79 mm – 0.89 mm x 31.75 mm
Additional Information:
Item Code: CS-114S
