Product Description:

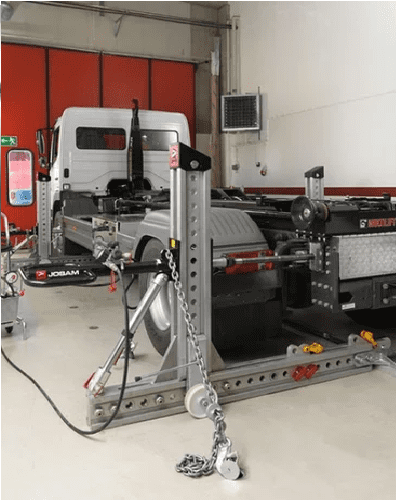

A universal straightening systemfor heavy vehicles.
The JOSAM i-press has a unique capacity. The threemulti-functional straightening units work in X-,Y- and Z directions and can press and withstand pressure both in a horizontal and vertical direction. The equipment is ergonomic, easy to handle and is moved with a stablehandgrip.
The system consists of three complete straightening units each mounted on wheels and with accessories. It can easily be complemented with other Josam straightening tools such as our C-clamps and hydraulics.
The JOSAM i-press has a unique capacity. The three multi-functional straightening units work in X-,Y- and Z- directions and can press and withstand pressure both in a horizontal and vertical direction. The equipment is ergonomic, easy to handle and is moved with a stable handgrip.
The JOSAM i-press is made of aluminium alloy. The low weight makes installation and handling easier. Minimal set-up time. When you take hold of the handgrip, you take with you the complete straightening unit. The force is distributed through several floor anchorings. The pre-tension makes it possible for a variable set-up.
When the straightening system is not being used, wheel it over to the side and the floor area is free to use for otherwork. The JOSAM i-press is optimal for use on a floor surface area of approximately 4 X 14 meters. The system is flexible and if the facility is longer than 14 meters, the workplace can simply be prolonged. It is safe to use.
JOSAM i-press can be installed in existing concrete floors with a thickness of at least 150 mm. Our recommendation is for the installation of at least 13 x 3 anchorings.
For the floor anchorings true-to-gauge holes need to be drilled into the concrete floor (for measurement specifications, refer to the illustration in this folder). In every hole, floor anchorings need to be installed (chain anchorings or screw anchorings).
The centre beam is installed by attaching it to the floor anchorings with bolts. The centre beam can be removed at any time by loosening the bolts. In every joint between the beams, a joint connector is to be used.
Features :
- The three multi-functional straightening units work in X-,Y- and Z- directions and can press and withstand pressure both in a horizontal and vertical direction.
- The equipment is ergonomic, easy to handle and is moved with a stable handgrip.
- The low weight makes installation and handling easier.
- Minimal setup time.
- The pre-tension makes it possible for a variable set-up.
- The JOSAM i-press is optimal for use on a floor surface area of approximately 4 X 14 meters.
- The system is flexible and if the facility is longer than 14 meters, the workplace can simply be prolonged. It is safe to use.
