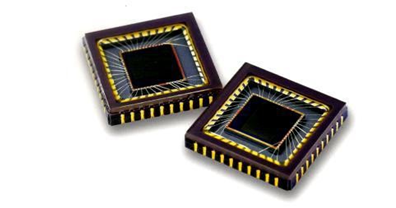

PX3169KA

Brand: PIXELPLUS
Ask For Price

Product Specification:

Pixel Size Pixel Size
Pixel Size Pixel Size
Effective Image Area 4008(mmj x 3.048(mml

Product Description:

 Support for display image size 1280 x 960 with 1.3MP Provide for effective image size 1336 x...
View Complete Details
  • Product Details
  • Company Details

Product Specification:

Pixel Size Pixel Size
Pixel Size Pixel Size
Effective Image Area 4008(mmj x 3.048(mml
Optical Format 1/3.75(inch)
Input Clock frequency 27 [MHz)
Output Format 2-Lane MIDUDVPCcinbe with RAWNUV Data
Frame Rate HDR 30 fps
Dynamic Range 121 /dB)
Power Consumption 230mW
SNR 40.9 (dB)
Package ACSPABGA
Application Surround view Monitoring($1M Rear View Camera)

Product Description:

 Support for display image size 1280 x 960 with 1.3MP
Provide for effective image size 1336 x 1016 for mechanical alignment adjustment +40(H), +40(V) and for color processing +16(H), +16(V)

  • Support for high dynamic range 120dB with DCG (Dual Conversion Gain) and multi exposure method
  • Implemented ASIL-B safety function
  • Qualified to AEC-0100 (Grade 2)
  • Support for combined RGB bayer! YUV output format: DVP 12bit RAW and 8bit YUV/MIPI 2-lanes RAW / YUV
  • Support for image signal processing functions such as LSC, DPC, PFR, BLC, HDR Combine, Tonemap, Demosaic, Denoise Dehaze, Gamma Correction, Color Correction Matrix, Edge enhancement, Color Enhancement, AE, AWB, etc
  • Programmable frame size, window size, and exposure
  • Support for external synchronization capability (Genlock)
  • Built-in 21( bit of one-time programmable memory (OTP) for storing the chip information and chip calibration
  • Embedded temperature sensor for monitoring junction temperature of CIS
  • Embedded spread spectrum clock generation (SSCG) for EMI avoidance
  • Available Anti-Reflection (AR) coating Glass
