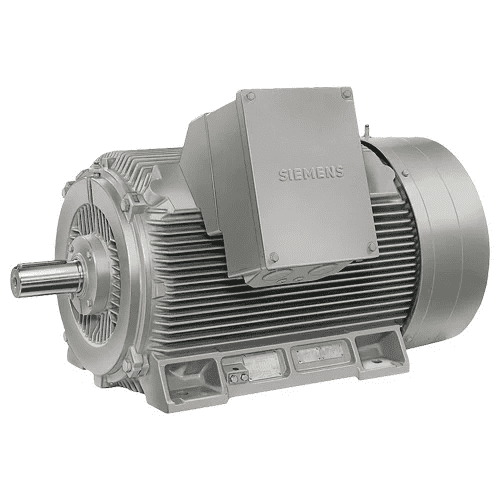

Siemens Efficiency Motors

Brand: Makharia Machineries Pvt. Ltd.
Ask For Price

Product Specification:

Phase Three Phase
Voltage 415
Mounting Type B3, B5, B3B5

Product Description:

The New IS: 12615 is based on the International Standard IEC 60034-30 (2008) which defines New...
View Complete Details
  • Product Details
  • Company Details

Product Specification:

Phase Three Phase
Voltage 415
Mounting Type B3, B5, B3B5
Ambient Temperature 50 degree C
Motor Brand Siemens

Product Description:

The New IS: 12615 is based on the International Standard IEC 60034-30 (2008) which defines New Efficiency Classification for single speed, three phase, induction motors.

Features:

The new IS: 12615 covers single speed, three-phase, 50Hz, cage induction motors that: have rated voltage ≤1000V; have a rated output 0.37kW ≤ PN ≤ 375kW; have either 2, 4 or 6 poles; meet frame size to output relation as stipulated in IS: 1231 (for outputs covered by IS:1231); are rated on the basis of either duty type S1 (continuous duty) or S3 (intermittent periodic duty) with rated cyclic duration factor of 80% or higher; are capable of operating direct on-line; are designed for operation on virtually sinusoidal and balanced voltage conditions as defined in 7.2.1 of IS/IEC 60034-1; designed for an ambient temperature not exceeding 40°C and altitude not exceeding 1000m; have degree of protection IP44 or superior; have method of cooling IC411 in accordance with IS 6362 / IEC 60034-6; have service factor not exceeding 1.0.

The Efficiency classes defined are:

IE1 – Standard Efficiency

IE2 – High Efficiency

IE3 – Premium Efficiency

The New IS:12615 also stipulates that for motors to be classified as “Energy Efficient”, these must meet at least IE2 efficiency values.

Additional Information:

Item Code: SiemensIE2

Company Description :

Since our inception in 1968, we are devoted to stocking and supplying a wide array of LT & HT motors, worm and helical gearboxes, geared motors, pumps for water and process applications, VVFD and automation products. Our product range includes HT Motors (Marathon, Crompton & Kirloskar), LT Motors (Siemens, ABB, Bharat Electric, Marathon, Crompton Greaves & Kirloskar), Worm Gearbox (ALCON), Bevel/Parallel/Heli-Worm Gearbox (Siemens - Flender and Kirloskar). PBL), Water & Process Pumps (Kirloskar & Crompton Greaves) and VVFD (ABB) We are the authorized distributor and largest distributor of these renowned brands like Siemens, Flender, ABB, Marathon, Elecon, Bharat Electric, Crompton Greaves the number is. and Kirloskar. These products are highly appreciated by the clients for their efficient performance, reliability, service, smooth operation and competitive prices and availability. These manufacturers employ advanced technology and latest machines to ensure that they meet the standards...
  • GST No. : 27AAACM2855Q1ZY
  • Address : No. 310/311, Nav Neelam Building Dr. R. G. Thadani Marg, Worli, Mumbai-400025, Maharashtra, India

Send Enquiry

Seller Details

Makharia Machineries Pvt. Ltd.

Mumbai,Maharashtra

GST 27AAAMCS4847G1ZX
