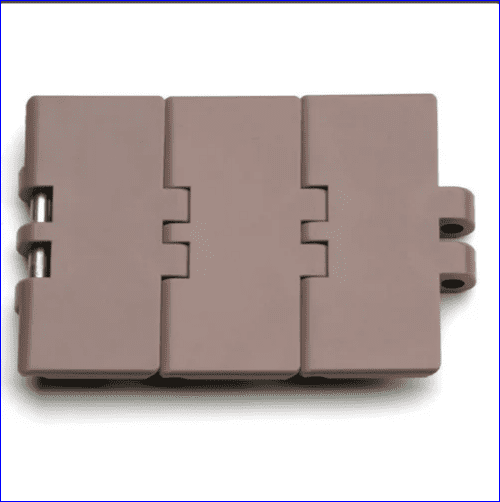

Slat Chain

Brand: Drives & Drives

Ask For Price

Product Specification:

Material	Mild Steel
Brand	Drives & Drives
Usage/Application	Industrial

Product Description:

We are well-acknowledged in the industry as a leading manufacturers and suppliers of a large gamut...

View Complete Details

Product Details
Company Details

Product Specification:

Material	Mild Steel
Brand	Drives & Drives
Usage/Application	Industrial
Weight	1.67-3.35 Lb/feet
Pitch	1.5 inch
Side Float Pin Size	0.025 inch
Bearing Area	0.2 Sq. inch
Working Load	550 Lb

Product Description:

We are well-acknowledged in the industry as a leading manufacturers and suppliers of a large gamut of Slat Chain. Manufactured from high grade stainless steel, these products are widely demanded for several industrial applications. Our professionals ensure to manufacture these products in accordance with the specifications and details provided by the customers.

Feature:s

Corrosion-resistance
Durability
Resistance against wear
Abrasion-resistance

Specifications:

Chain No. Pitch A Width over slat (Nominal) B Depth from top of slat to chain center Max Gearing Dimensions Side float of slat on pin (max) Bearing area Working load Weight
Gearing Barrel dia (depth of link Max D) Width Over gearing face (MAX)
Stainless Material Mild Steel Case hardened in. in. in. in in. in. Sq.in Lb. Lb.ft
199 700 199 720 1.5 3 0.225 0.51 1.665 0.025 0.2 550 1.67
199 701 199 721 3.25 1.76
199 702 199 722 3.5 1.86
199 704 199 724 3.75 1.95
199 703 199 723 4 2.05
199 709 199 729 7.5 3.35
