Product Description:
| Usage/Application |
Cranes, Hoists, Travel Drives, Conveyors & Many Other Industrial Applications |
| Capacity |
0.12kW till 55kW |
| Number Of Poles |
4 |
| Frequency |
50Hz |
| IP Rating |
IP54, IP55, IP56, IP65, IP66 |
| Color |
RAL 5010 Blue |
| Frame Size |
IEC 71 to IEC 250M |
| Insulation Class |
F |
| No Load Speed |
Refer Catalogue |
| Duty |
S1, S3 |
| Suitable For |
Cranes, Hoists, Travel Drives, Conveyors & Many Other Industrial Applications |
| Body Enclosure |
Cast Iron & Aluminium |
| Electromagnetic Brake Static Friction Torque Motor Shaft |
14Nm till 1000Nm based on motor rating |
| DC Brake |
Available on Request |
| Contact Gap |
Refer our catalogue |
| Electromagnetic Brake Voltage Or Frequency Or Current Or Input |
Direct AC Supply 415V / 50Hz |
| No of poles |
2, 4 & 6 |

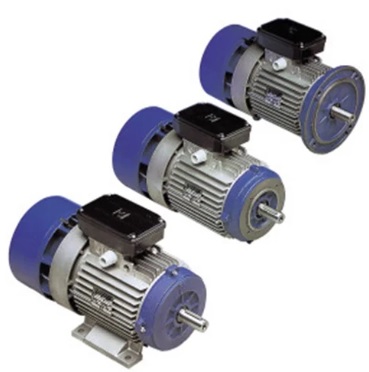

BA Series (AC Brake & DC Brake)
The BA series consists of Three-Phase Asynchronous Brake Motor totally enclosed and fan cooled. The BA series ranges from 71 right up to 315 frame size. The brake power supply is AC 3-phase as standard.On request DC brake can be provided with a rectifier integrated in the terminal box. The rectifier is provided with an over-voltage and radio frequency emission protection device. All BA series motors are provided with a manual brake release. The BA series cooling fan is fitted between the motor and the brake assembly. The brake moving element and the brake coil have a laminated magnetic nucleus to reduce losses and to allow very fast braking. BA series main features are a very quick braking action, both in unlocked and high torque braking, a constant braking time and a very high number of start/stop cycles also under severe applications.
Additional options:
- PV (BAPV) Series with Fly-wheel that allows progressive start and stop, particularly suitable for traverse applications
- PK (BAPK) Series with Special ''''P'''' rotor that increases starting torque & reduce starting current and with ''''K'''' (Steel) brake disc specially for hoisting application, safety application or high ambient temperature environment where the highly sturdy & moment of inertia required
- F (BAF) Series with Double brake disc and extremely high brake torque
- SV (BASV) Series with Double radial forced cooling
- AE (BAE) Series with Buit-in Encoder (Incremental or Absolute encoder)
Two-Speed Motors
- BAD : Dual pole Single winding i.e. Dahlander winding (2/4,4/8)
- BADA : Dual pole Dual winding (2/6,2/8,4/6,4/12,2/12,4/16)
BM Series (Only DC Brake)
The BM series consists of three-phase, asynchronous brake motors totally enclosed fan cooled. The BM series frame size ranges from 56 up to 160. As standard the brake power supply is DC with a rectifier integrated in the terminal box. The rectifier is provided with an over-voltage and radio frequency emission protection device.The cooling fan is fitted at non-drive shaft end. BM series main features are low braking noise, gradual acceleration during the motor start and stop and the reduced overall dimensions.
Additional options:
- BMBM Series with Twin DC Brakes working independently of each other. Its main feature is a very highly reliable in those lifting applications where there are high demands of safety and silence. Eg. Theaters, Stage show auditoriums , Cradles & Monorails
- PV (BMPV) Series with Fly-wheel that allows progressive start and stop, particularly suitable for traverse applications
- EAV (BMEAV) Series with Buit-in Encoder (Incremental or Absolute encoder) & Axial forced cooling
- AV (BMAV) Series with Single axial servo fan replacing standard motor self-cooling fan
Two-Speed Motors:
- BMD : Dual pole Single winding i.e. Dahlander winding (2/4,4/8)
- BMDA : Dual pole Dual winding (2/6,2/8,4/6,4/12)
