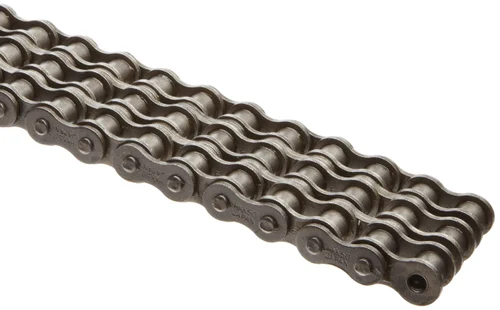

Triple Strand Corrosion Resistant Chain

Brand: Drives and Drives

Ask For Price

Product Specification:

Part Number	D06103SS01, D08303SS01, D10103SS01, D12003SS01, D16003SS01
Pitch (P)	9.525, 12.7, 15.875, 19.05, 25.4
Width between Inner Plates (W) MIN	5.72 - 17.02 mm

Product Description:

Our numerous customers can avail a range of Triple Strand Corrosion Resistant Chain from us. This...

View Complete Details

Product Details
Company Details

Product Specification:

Part Number	D06103SS01, D08303SS01, D10103SS01, D12003SS01, D16003SS01
Pitch (P)	9.525, 12.7, 15.875, 19.05, 25.4
Width between Inner Plates (W) MIN	5.72 - 17.02 mm
Roller Dia (D) MAX	6.35 - 15.88 mm
Plate Height (H) Max	8.2 - 21 mm
Bearing Pin Dia (d) MAX	3.28 - 8.27 mm
Width over bearing Pin (A) MAX	34 - 99.9 mm
Width over joint Fasteners (B) MAX	37.3 - 105.3 mm
Transverse Pitch (P1)	10.24 - 31.88 mm
Projected bearing Area (sq.cm)	0.84 - 4.14
Avg Weight per metre (Kg)	1.11 - 5.03
Tensile Strength (Kgf) MIN	1820 - 11900

Product Description:

Our numerous customers can avail a range of Triple Strand Corrosion Resistant Chain from us. This range of products is manufactured using quality-approved raw material which is procured from trustworthy vendor base of the industry. Owing to this, our chains can be easily installed in various industrial applications and sectors. The chains are also examined by our quality controllers on the basis of various recommended parameters.

Feature:

Long service life
Minimum maintenance
Strong resistance to abrasion

Company Description :

Drives & Drives

Drives & Drives holds 4 verticals in its business

1) Design and manufacturing Coil lifters, Automated Coil Lifters, Zinc Dross Remover DROSSER, Spreader & Lifting Beams, Billet Lifters, Tong Lifter etc.

2) Design and manufacturing Material Handling Equipment - Scissor lift, Dock leveler, Goods Lift, Customized trolleys, Coil Cars etc.

3) Authorized distributor of Diamond Make Industrial Roller Chains and manufacturer of conveyor chains, attachment chain, sprockets, UHMWPE Pressure pads, couplings, universal joints etc.

4) Authorized distributor of an Italian based manufacturer with the brand "CARTEC", manufacturing varioustype of lifting points, attachment points like Swivel eyebolts, rotating eye bolts with clamp, Weldon type attachment points, auto adjustable swivel eyebolts in Gr80 and Gr100 material . Sling chains & accessories like shortening clutch,connecting links, various type of hooks etc. in Gr 80 and Gr 100 material.Our entire CARTEC products are safety rated with H 92 mark from a testing house DGUV Germany
