Product Specification:

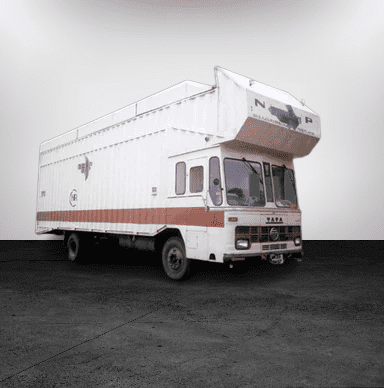

Body | The super structure is of container profile fabricated from rolled/ pressed section. The side and roof shall be of 1.6mm thk MS sheet corrugated for high rigidity with lesser weight. Front hinge top deck is provided inside the body which shall be lifted/ |
Rear Door cum Loading Ramp | Loading/Unloading operated with twin hydraulic cylinders. Tubular construction with 1.6 mm thick MS plain sheet. Antiskid rod to avoid slipping of tyres. |
Hydraulics | Hydraulic cylinder shall be powered through PTO/Pump available in truck or Power pack. The wet kit shall include hydraulic tank, DC Valve, Relief Valve and Return line filter. Max Working pressure 170 Bar. Heavy duty cylinders shall be used for operating |
Product Specification:
King Pin | Dia 50.8 mm as per IS 6763 Part I. Optional 88.9 mm |
Landing Legs | Two Speed interlinked for simultaneous lifting. Static capacity 80 T, Lifting capacity 28 T. Provided with swivel foot for stable support. |
Suspension | Leaf spring suspension comprising of cast anchor brackets and load equalizing brackets with poly bushes & hardened pins. Leaf spring free ended & semi-elliptical. |
Product Specification:
Body | The super structure is of container profile fabricated from rolled/ pressed section. The side and roof shall be of 1.6mm thk MS sheet corrugated for high rigidity with lesser weight. Front hinge top deck is provided inside the body which shall be lifted/ |
Rear Door cum Loading Ramp | Loading/Unloading operated with twin hydraulic cylinders. Tubular construction with 1.6 mm thick MS plain sheet. Antiskid rod to avoid slipping of tyres. |
Hydraulics | Hydraulic cylinder shall be powered through PTO/Pump available in truck or Power pack. The wet kit shall include hydraulic tank, DC Valve, Relief Valve and Return line filter. Max Working pressure 170 Bar. Heavy duty cylinders shall be used for operating |
Product Specification:
King Pin | Dia 50.8 mm as per IS 6763 Part I. Optional 88.9 mm |
Landing Legs | Two Speed interlinked for simultaneous lifting. Static capacity 80 T, Lifting capacity 28 T. Provided with swivel foot for stable support. |
Suspension | Leaf spring suspension comprising of cast anchor brackets and load equalizing brackets with poly bushes & hardened pins. Leaf spring free ended & semi-elliptical. |
